1
Engine displacement
300
2
Model
GTS
3
Year
2015
4
Trim
GTS ie ABS
5
Parts Catalog

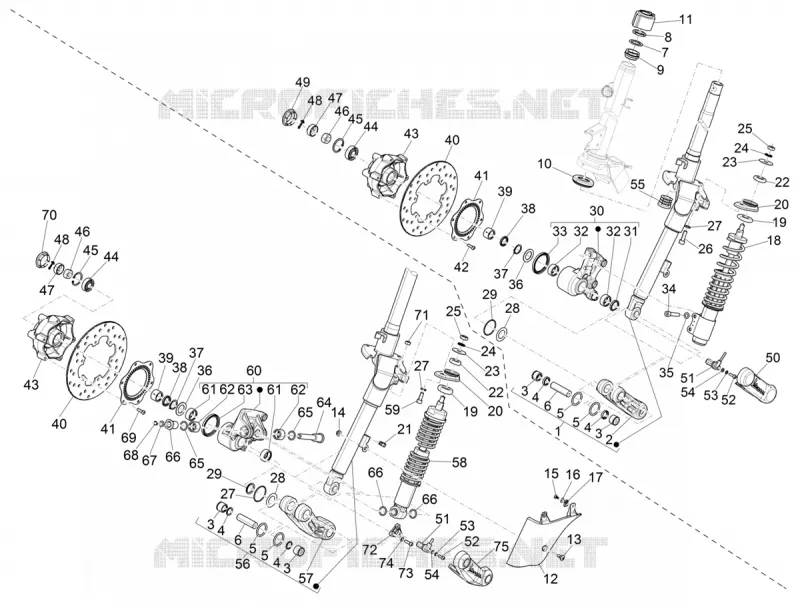

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Throttle body - Injector - Union pipe
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
Fork/steering tube - Steering bearing unit
1
2
3
3
3
3
4
4
4
4
5
5
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
22
22
23
23
24
25
25
26
27
27
27
28
28
29
29
29
30
31
32
32
33
34
35
36
36
37
37
38
38
39
39
40
40
41
41
42
43
43
44
44
45
45
46
46
47
47
48
48
49
50
51
51
52
52
53
53
54
55
56
57
58
59
59
60
61
61
62
62
63
64
65
65
66
66
66
67
68
69
70
71
72
73
74
75
1
Steering tube complete with arm
1C0025285
$523,80 Unit Price incl. VAT
2
Suspension arm with I.P.
6514825
$95,15 Unit Price incl. VAT
3
Roller cage
198513
$5,97 Unit Price incl. VAT
4
Gasket ring
119219
$0,67 Unit Price incl. VAT
5
Gasket
006731
$0,34 Unit Price incl. VAT
6
Piston pin
177451
$3,03 Unit Price incl. VAT
7
Lower steering bearing
650075
Not Available
8
Upper thrust ring
650693
Not Available
9
Steering security plate
582787
$3,65 Unit Price incl. VAT
10
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
11
Collar
582828
$4,82 Unit Price incl. VAT
12
Front suspension cover
1C001153
$24,90 Unit Price incl. VAT
13
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
14
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
15
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
16
Washer
012528
$0,34 Unit Price incl. VAT
17
Spring plate
CM017410
$0,34 Unit Price incl. VAT
18
Complete front shock absorber
56286R
$85,05 Unit Price incl. VAT
19
Pad
174874
$2,36 Unit Price incl. VAT
20
Shock absorber connection bracket
601556
$7,73 Unit Price incl. VAT
21
Elastic spring
231590
$0,25 Unit Price incl. VAT
22
Pad
174085
$1,18 Unit Price incl. VAT
23
Washer
174088
$0,84 Unit Price incl. VAT
24
Washer
012535
$0,08 Unit Price incl. VAT
25
Nut
021210
$0,16 Unit Price incl. VAT
26
screw
597150
$3,65 Unit Price incl. VAT
27
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
28
Washer
177445
$0,34 Unit Price incl. VAT
29
O-ring
177408
$0,08 Unit Price incl. VAT
30
Pin and shock absorber support
1C0025295
$79,16 Unit Price incl. VAT
31
Gasket ring
1C001969
$4,04 Unit Price incl. VAT
32
Drawn cap
177436
$9,18 Unit Price incl. VAT
33
Ring
177494
$1,85 Unit Price incl. VAT
34
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
35
Spring washer
709047
$0,08 Unit Price incl. VAT
36
Washer
177414
$0,75 Unit Price incl. VAT
37
Circlip
006422
$0,16 Unit Price incl. VAT
38
Gasket ring
177443
$1,77 Unit Price incl. VAT
39
Roller cage
177442
$4,04 Unit Price incl. VAT
40
Brake disc
56484R
$35,10 Unit Price incl. VAT
41
Front ABS tone wheel
669115
$9,33 Unit Price incl. VAT
42
Cylindrical screw
1C002563
Not Available
43
Rear wheel hub with U.P.
650907
$46,15 Unit Price incl. VAT
44
Bearing
177610
$8,41 Unit Price incl. VAT
45
Snap ring
006635
$0,25 Unit Price incl. VAT
46
Nut
021114
$0,51 Unit Price incl. VAT
47
Cap
177609
$2,19 Unit Price incl. VAT
48
Split pin
012789
$0,16 Unit Price incl. VAT
49
Cover
1C000523
$9,49 Unit Price incl. VAT
50
Front suspension arm cover
561433
Not Available
51
ABS sensor
1D0001275
Not Available
52
Torx Screw
880285
$3,65 Unit Price incl. VAT
53
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
54
Flat washer
669282
$1,43 Unit Price incl. VAT
55
Cover
601026
$0,84 Unit Price incl. VAT
56
Steering tube complete with arm
1C0006215
$650,76 Unit Price incl. VAT
57
Left suspension arm
6691315
$163,39 Unit Price incl. VAT
58
Complete front shock absorber
1C000922R
$244,35 Unit Price incl. VAT
59
screw M8x20
599009
$3,65 Unit Price incl. VAT
60
Pin and shock absorber support
1C0005065
$112,82 Unit Price incl. VAT
61
Drawn cap
177436
$9,18 Unit Price incl. VAT
62
Roller cage
1C000167
$10,19 Unit Price incl. VAT
63
Ring
177494
$1,85 Unit Price incl. VAT
64
Threaded pin
1C000500
$29,76 Unit Price incl. VAT
65
Gasket ring
482302
$2,95 Unit Price incl. VAT
66
Threaded bush
1C000499
$22,46 Unit Price incl. VAT
67
Washer
847183
$0,15 Unit Price incl. VAT
68
Safety washer
006408
$0,09 Unit Price incl. VAT
69
Hex socket screw M6x20
667152
$0,26 Unit Price incl. VAT
70
Cover
092517
Not Available
71
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
72
ABS support bracket sensor
1C000548
$8,91 Unit Price incl. VAT
73
Hex socket screw M6x20
709674
$0,17 Unit Price incl. VAT
74
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
75
Swinging arm cover
1C000835
$24,90 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
