1
Engine displacement
300
2
Model
GTS
3
Year
2017
4
Trim
GTS ie ABS
5
Parts Catalog
Rear luggage rack
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Stater - Electric starter

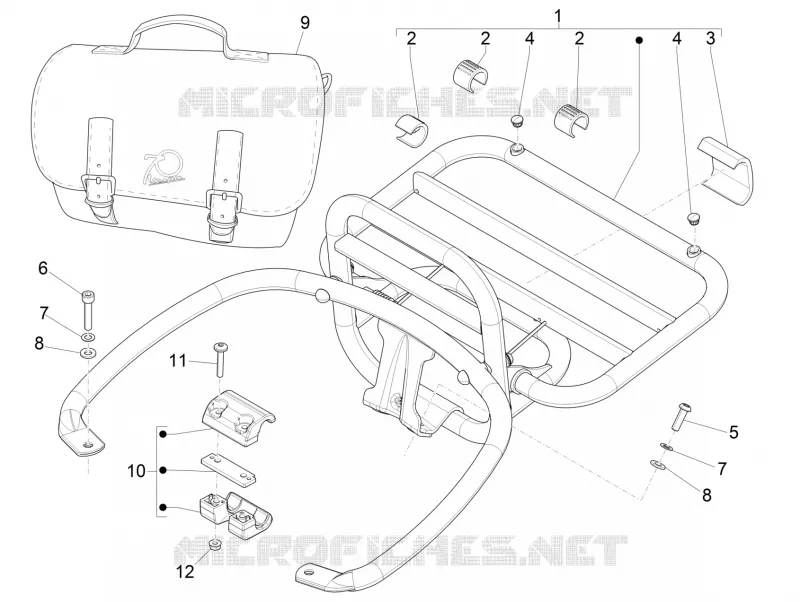

Rear luggage rack
1
1
2
2
2
3
4
4
5
6
7
7
7
8
8
8
9
10
11
12
1
Complete rear luggage rack
623977
$741,29 Unit Price incl. VAT
1
Complete rear luggage rack
1B002106
$235,32 Unit Price incl. VAT
2
Buffer for luggage carrier
622554
$5,38 Unit Price incl. VAT
3
Retainer flap
623576
$21,37 Unit Price incl. VAT
4
Handle plug
623561
$7,23 Unit Price incl. VAT
5
screw torx
623920
$3,70 Unit Price incl. VAT
6
Hex socket screw M6x30
319538
$0,19 Unit Price incl. VAT
7
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
8
Washer 6.4x13x1.5
013777
$0,08 Unit Price incl. VAT
9
Rear saddlebag
1B003667
$1 098,18 Unit Price incl. VAT
10
Flap fastening kit
1B003961
$7,02 Unit Price incl. VAT
11
Metric screw
CM179307
$2,99 Unit Price incl. VAT
12
Nut
219277
$0,16 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
