Front glove-box - Knee-guard panel for Fly 2T from 2007

Front glove-box - Knee-guard panel

1

Front glove comp.

621981000D

$176,76 Unit Price incl. VAT

2

Glove compartment door

621982000D

$22,29 Unit Price incl. VAT

3

Gasket

CM006302

Not Available

4

Rim

621997000D

$25,95 Unit Price incl. VAT

5

Square

252420

$0,59 Unit Price incl. VAT

6

Door fixing bracket

257614

$1,09 Unit Price incl. VAT

7

Spring

257617

$4,89 Unit Price incl. VAT

8

Hook

295528

$11,77 Unit Price incl. VAT

9

Locking plate

573057

$0,53 Unit Price incl. VAT

10

Self tapping screw

297498

$0,08 Unit Price incl. VAT

13

Self-tap screw

576189

$0,05 Unit Price incl. VAT

14

Metric screw TBC

259348

$2,99 Unit Price incl. VAT

15

Self-tap screw M3x20

258146

$0,25 Unit Price incl. VAT

16

Spring plate

CM017410

$0,34 Unit Price incl. VAT

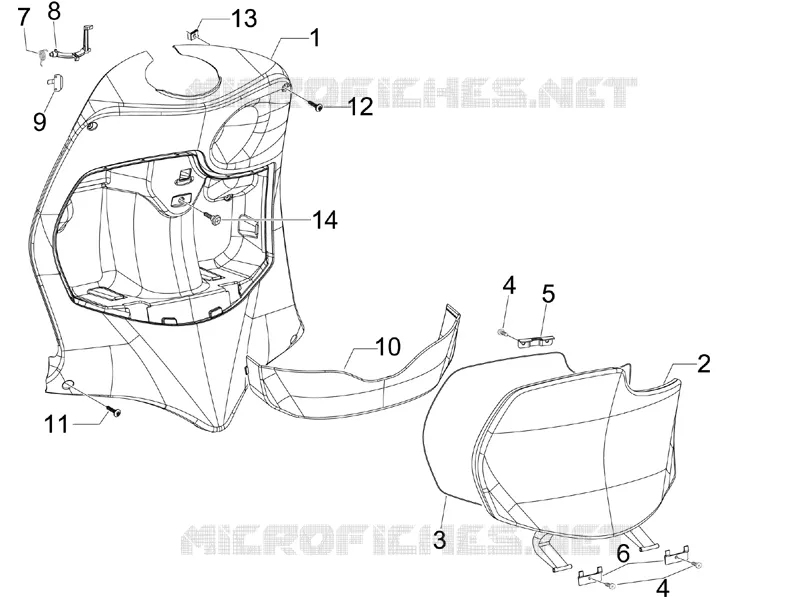

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
