1
Engine displacement
50
2
Model
FLY
3
Year
2006
4
Trim
Fly 2T
5
Parts Catalog

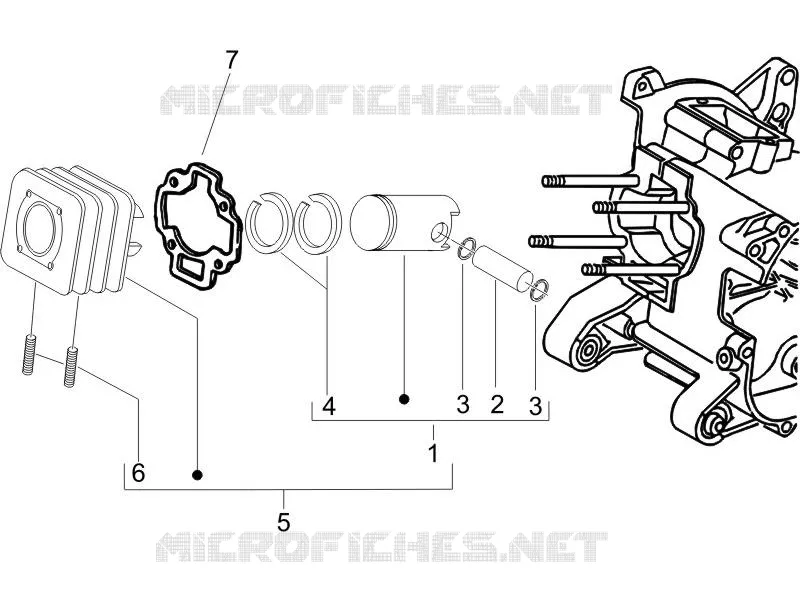

Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Crankshaft
by
Cylinder head cover
Cylinder-piston-wrist pin unit
1
2
3
3
4
5
6
7
1
Piston assy 1cat.(M)
4878020001
$39,33 Unit Price incl. VAT
1
Piston assy 2cat.(N)
4878020002
$45,83 Unit Price incl. VAT
1
Piston assy 3cat.(O)
4878020003
$39,33 Unit Price incl. VAT
1
Piston assy 4cat.(P)
4878020004
$39,33 Unit Price incl. VAT
2
Piston pin
239404
$1,57 Unit Price incl. VAT
3
Stop ring
239455
$0,44 Unit Price incl. VAT
4
Gasket ring
825416
$3,28 Unit Price incl. VAT
5
Cylinder-piston-wrist pin assy.
831116
$152,41 Unit Price incl. VAT
6
Stud bolt M6
239397
$0,24 Unit Price incl. VAT
7
Cylinder base gasket
286810
$0,24 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
