1
Engine displacement
50
2
Model
FLY
3
Year
2006
4
Trim
Fly 2T
5
Parts Catalog
Air filter
6

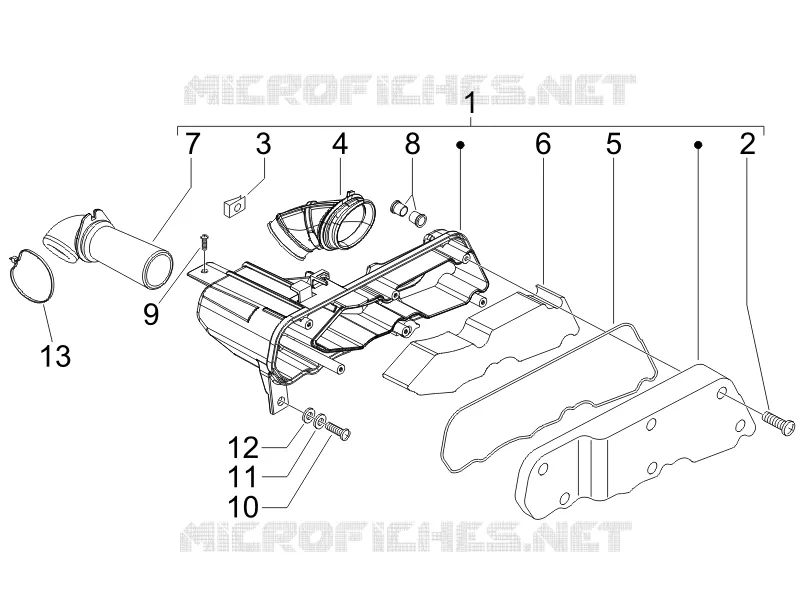

Parts Diagram
Parts Catalog
Silencer
by
Secondary air box
Air filter
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Air box
840160
Not Available
2
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Carburettor-air box hose
487592
$2,96 Unit Price incl. VAT
5
Gasket
487718
$1,68 Unit Price incl. VAT
6
Air filter
487719
Not Available
7
Hose
840159
$3,94 Unit Price incl. VAT
8
Knurled bushing
830056
$0,34 Unit Price incl. VAT
9
Special cap screw M6x50
018640
$0,16 Unit Price incl. VAT
10
Screw M6x20
015759
$2,95 Unit Price incl. VAT
11
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
12
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
13
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
