1
Engine displacement
50
2
Model
FLY
3
Year
2007
4
Trim
Fly 2T
5
Parts Catalog

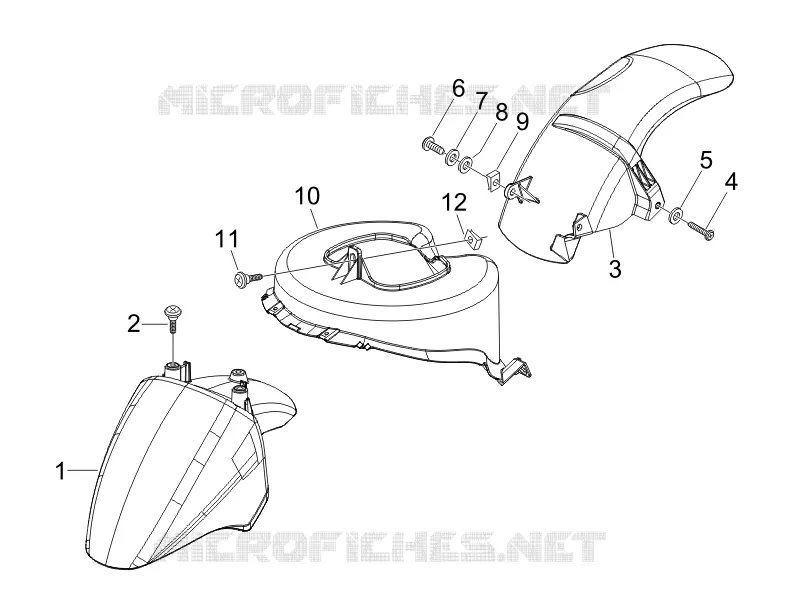

Wheel huosing - Mudguard
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Helmet huosing - Undersaddle
Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
9
10
11
12
1
FRONT FENDER
6002934018
Not Available
1
Front mudguard v.bianco
6002930087
$191,82 Unit Price incl. VAT
1
Front mudguard, f.red
60029300R7
Not Available
1
AR MUDGUARD
6002930018
Not Available
1
FRONT FENDER
6002934087
Not Available
1
AR MUDGUARD
60029340R7
Not Available
1
AR MUDGUARD 94
6002934090
Not Available
1
Front mudguard
60029300DB
$191,82 Unit Price incl. VAT
1
Front mudguard v.nero
6002930090
$191,82 Unit Price incl. VAT
1
Front mudguard
600293
$152,78 Unit Price incl. VAT
1
Front mudguard
60029340F2
Not Available
1
FRONT FENDER
60029340BG
Not Available
1
AR MUDGUARD
60029300AF
Not Available
1
Front mudguard v.grigio
60029300F2
$191,82 Unit Price incl. VAT
1
AR MUDGUARD
60029340DB
Not Available
2
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
3
Rear mudguard
621996
Not Available
4
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
5
Spring washer
709047
$0,08 Unit Price incl. VAT
6
screw
015804
$3,65 Unit Price incl. VAT
7
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
8
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
9
Spring plate M6
254485
$0,34 Unit Price incl. VAT
10
Wheel compartment
621998
$35,36 Unit Price incl. VAT
11
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
12
Spring plate M6
254485
$0,34 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
