Frame/bodywork for GILERA PIAGGIO VESPA Runner Pure Jet -SC from 2005

Frame/bodywork

1

Frame with u.p.

624288

Not Available

2

Lock support

298604

$16,40 Unit Price incl. VAT

3

Frame

6241125

$62,14 Unit Price incl. VAT

4

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

5

screw

015643

$2,04 Unit Price incl. VAT

6

Spring washer 13,75x8,15x4,5

016408

$0,08 Unit Price incl. VAT

7

Nut M8x6,5

020108

$0,08 Unit Price incl. VAT

8

Bolt

031115

$2,95 Unit Price incl. VAT

9

Spring washer 16x8,2x2,2

834187

$0,16 Unit Price incl. VAT

10

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

11

Elastic spring

259933

$0,08 Unit Price incl. VAT

12

Premisphere spring

295590

$4,82 Unit Price incl. VAT

13

Ball D6

295591

$5,38 Unit Price incl. VAT

14

screw

315092

Not Available

15

Gasket

975558

Not Available

16

Flat washer 15x8,4x1,5

003058

$0,08 Unit Price incl. VAT

17

Elastic spring

259933

$0,08 Unit Price incl. VAT

18

Premisphere spring

295590

$4,82 Unit Price incl. VAT

19

Ball D6

295591

$5,38 Unit Price incl. VAT

20

screw

315092

Not Available

21

Gasket

975559

Not Available

22

Hex socket screw

582428

$0,34 Unit Price incl. VAT

23

Spring washer 16x8,2x2,2

834187

$0,16 Unit Price incl. VAT

24

COMPLETE RH FOOTREST

949527

Not Available

25

LH FOOTREST RUNNER

949526

Not Available

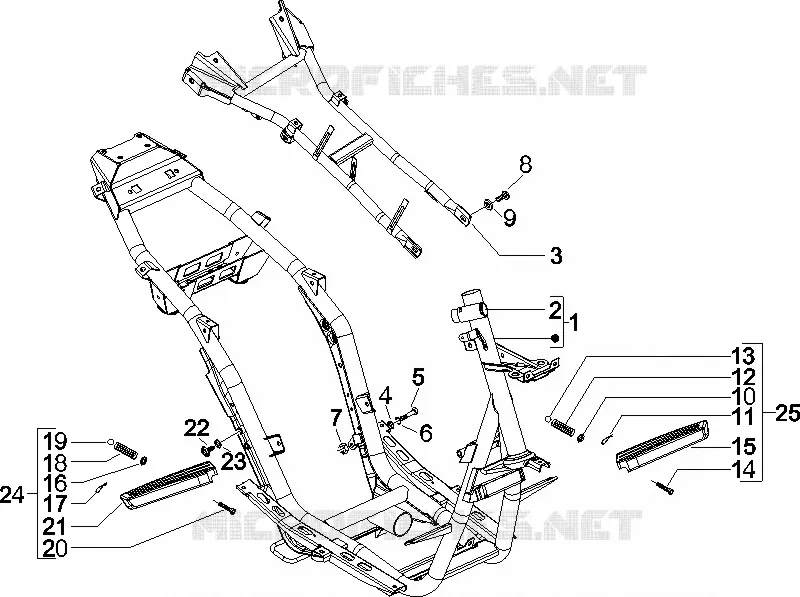

Find the detailed Frame/bodywork GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
