1
Engine displacement
150
2
Model
FLY
3
Year
2008
4
Trim
Fly 4T E3
5
Parts Catalog
Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Fork/steering tube - Steering bearing unit
by
Crankcase cover - Crankcase cooling
Side cover - Spoiler
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
SPOILER INF.PIGMENTATO GRIGIO 722
6219840043
$113,74 Unit Price incl. VAT
2
FIANCATA POST.SX BLU
62198600DE
$323,23 Unit Price incl. VAT
2
FIANCATA POST.SX GRIGIO
62198600F2
$323,23 Unit Price incl. VAT
2
Rear body side L.H.
6219860090
Not Available
2
FIANCO SX
621986
$256,68 Unit Price incl. VAT
2
Rear body side L.H.
6219860087
$323,23 Unit Price incl. VAT
3
Lower side panel l.h.
621990000C
Not Available
4
Rear body side R.H.
62198700F2
Not Available
4
Rear body side R.H.
6219870090
Not Available
4
Rear body side R.H.
621987
Not Available
4
Rear body side r.h.
62198700DE
$323,23 Unit Price incl. VAT
4
FIANCATA POST DX BIANCO OTTICO
6219870087
$323,23 Unit Price incl. VAT
5
Lower side panel r.h.
621991000C
$37,35 Unit Price incl. VAT
6
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
7
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT
8
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
9
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
10
Self-tap screw
576189
$0,05 Unit Price incl. VAT
11
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
12
Self-tap screw
576189
$0,05 Unit Price incl. VAT
13
VITE
258249
$0,09 Unit Price incl. VAT
14
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT

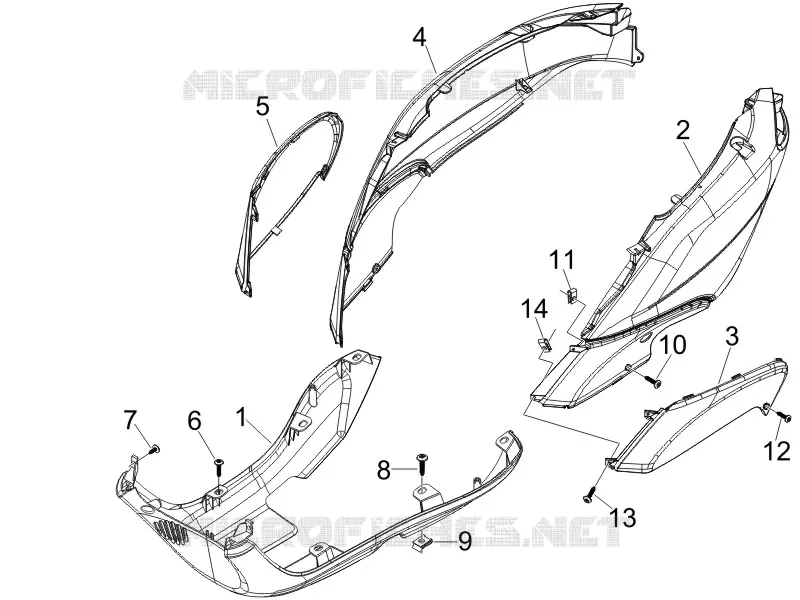

Find the detailed Side cover - Spoiler GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
