Engine displacement
150
2
Model
FLY
3
Year
2015
4
Trim
Fly 4T 3V ie
5
Parts Catalog
Air filter
6

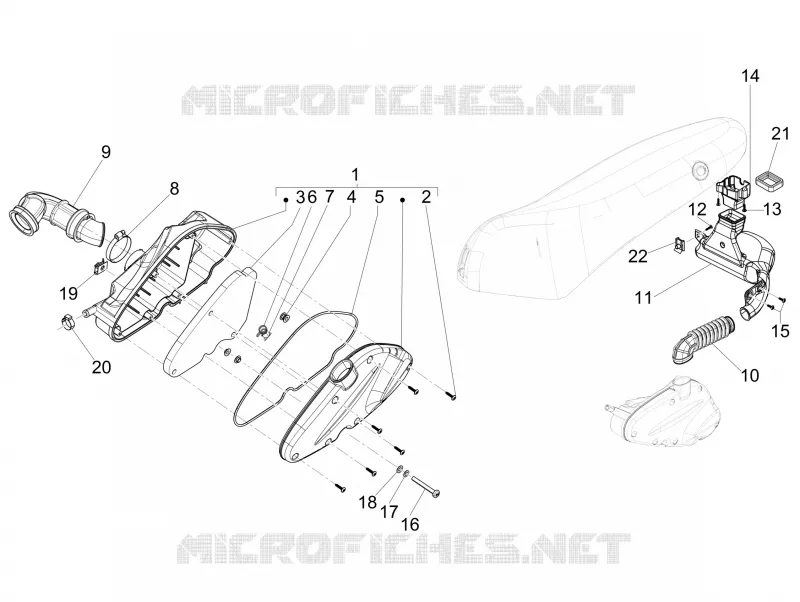

Parts Diagram
Parts Catalog
Head unit - Valve
by
Frame/bodywork
Air filter
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Air cleaner, assy.
B017940
$64,55 Unit Price incl. VAT
2
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
3
Filtering element
B017901
Not Available
4
Knurled bushing
830056
$0,34 Unit Price incl. VAT
5
Packing
B015728
$4,82 Unit Price incl. VAT
6
Hose clamp
CM002908
$0,34 Unit Price incl. VAT
7
Cap
B015752
$10,00 Unit Price incl. VAT
8
Hose clamp
614188
$2,61 Unit Price incl. VAT
9
Air cleaner sleeve
B017409
$14,30 Unit Price incl. VAT
10
Engine intake air conduit
674534
$25,82 Unit Price incl. VAT
11
Intake chamber
675634
$15,98 Unit Price incl. VAT
12
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
13
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
14
Extension
675635
$5,38 Unit Price incl. VAT
15
screw
CM179202
$0,25 Unit Price incl. VAT
16
Special cap screw M6x50
018640
$0,16 Unit Price incl. VAT
17
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
18
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
19
Spring plate M6
254485
$0,34 Unit Price incl. VAT
20
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
21
Gasket
675636
$4,82 Unit Price incl. VAT
22
Spring plate M6
254485
$0,34 Unit Price incl. VAT
