Engine displacement
150
2
Model
FLY
3
Year
2013
4
Trim
Fly 4T 3V ie
5
Parts Catalog
Remote control switches - Battery - Horn
6

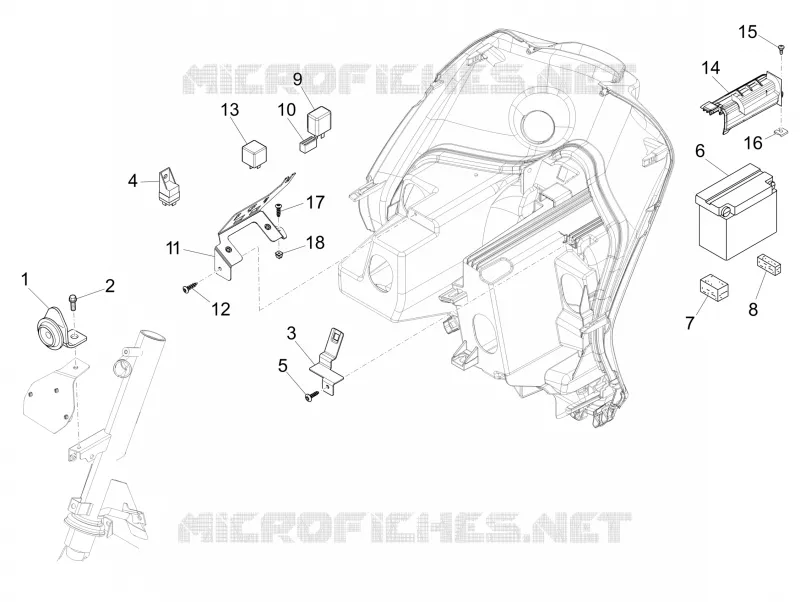

Parts Diagram
Parts Catalog
Rear brake - Brake jaw
by
Reduction unit
Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Horn 12v cc
CM087611
$15,66 Unit Price incl. VAT
2
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
3
Electromagnetic switch support bracket
642932
$5,38 Unit Price incl. VAT
4
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
5
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
6
Battery (Yuasa) 12V-6Ah
584662
$246,89 Unit Price incl. VAT
7
Stop buffer
673704
$5,38 Unit Price incl. VAT
8
Stop buffer
673702
$5,38 Unit Price incl. VAT
9
Turn indicator control
640289
Not Available
10
Device bracket
642317
$0,50 Unit Price incl. VAT
11
Relay support bracket
642777
$10,00 Unit Price incl. VAT
12
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
13
Relay
643341
$58,68 Unit Price incl. VAT
14
Battery cover
673569
$7,69 Unit Price incl. VAT
15
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
16
Spring plate M6
254485
$0,34 Unit Price incl. VAT
17
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
18
Expansion plug
199190
$2,95 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
