Engine displacement
150
2
Model
FLY
3
Year
2013
4
Trim
Fly 4T 3V ie
5
Parts Catalog
Handlebars coverages
6
Parts Diagram
Parts Catalog
Rear headlamps - Turn signal lamps
by
Transmissions
Handlebars coverages
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Dashboard lid
5A00005100090
Not Available
1
Dashboard lid
5A000051
Not Available
2
Handlebar rear cover
5A0000390000C
$107,59 Unit Price incl. VAT
3
Handlebar front cover
5A000045000ME
$81,01 Unit Price incl. VAT
3
Handlebar front cover
5A000045000ND
$81,01 Unit Price incl. VAT
3
Handlebar front cover
5A000045000BT
$81,01 Unit Price incl. VAT
3
Handlebar front cover
5A000045
$42,72 Unit Price incl. VAT
4
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
5
Front handlebar cover frame DX
5A000050
$15,74 Unit Price incl. VAT
6
Front handlebar cover frame SX
5A000049
$15,74 Unit Price incl. VAT
7
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
8
Self tapping screw
CM180702
$0,27 Unit Price incl. VAT
9
Spring plate
CM017410
$0,34 Unit Price incl. VAT
10
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
11
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
12
Spring plate
CM017409
$0,08 Unit Price incl. VAT
13
Spring plate
008108
$2,95 Unit Price incl. VAT
14
Spring plate
008108
$2,95 Unit Price incl. VAT
15
Rear handlebar cover frame
673155
$16,91 Unit Price incl. VAT

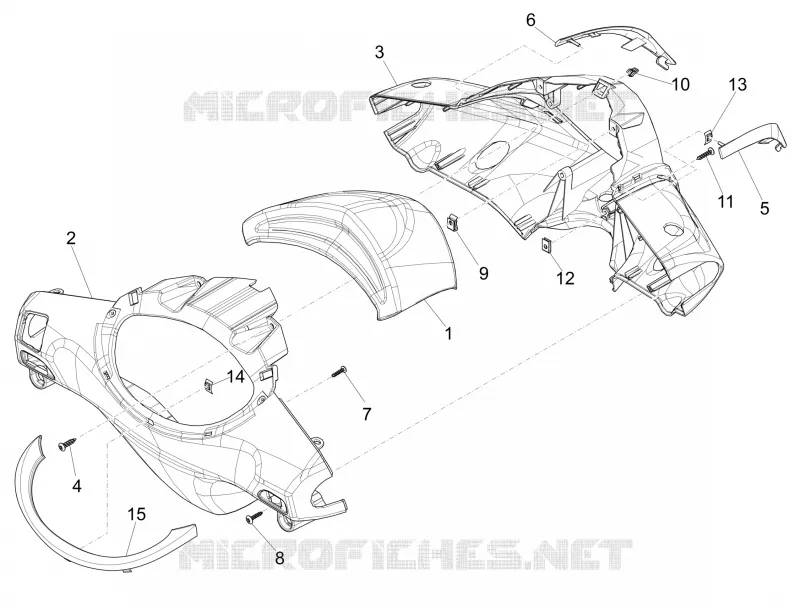

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
