1
Engine displacement
250
2
Model
NEXUS
3
Year
2006
4
Trim
Nexus -SP- E3
5
Parts Catalog

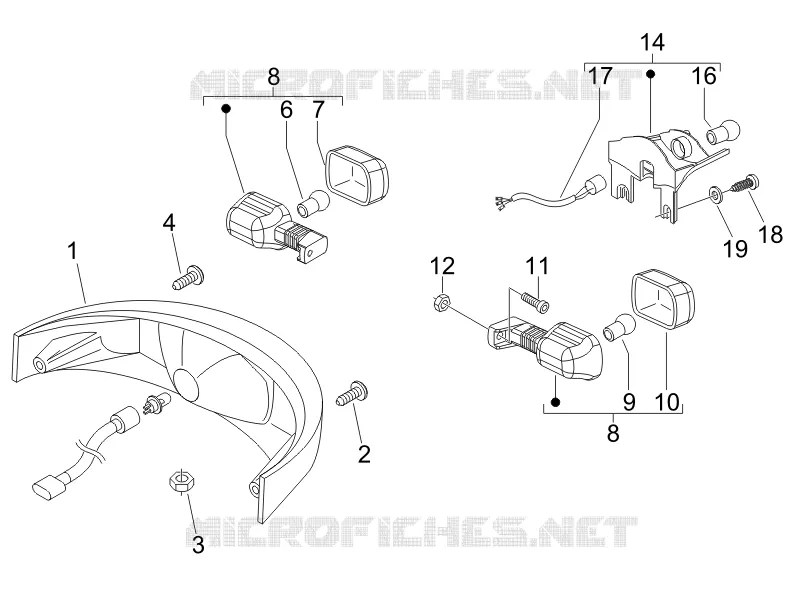

Rear headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Fork/steering tube - Steering bearing unit
Rear headlamps - Turn signal lamps
19
18
17
16
12
11
10
9
8
8
7
6
4
3
2
1
1
RR LIGHT ASSY NEXUS
639479
Not Available
2
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
3
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
4
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
5
RH front/LH rear turn indic.
639669
$18,27 Unit Price incl. VAT
6
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
7
Turn indicator lens
639338
$4,82 Unit Price incl. VAT
8
LH front/RH rear turn indic.
639670
$15,67 Unit Price incl. VAT
9
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
10
Turn indicator lens
639338
$4,82 Unit Price incl. VAT
11
screw M6x14
296170
$2,95 Unit Price incl. VAT
12
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
15
Rear licence plate light
583332
Not Available
16
Lamp 12V-5W
292022
Not Available
17
Wire
583331
$10,35 Unit Price incl. VAT
18
Self tapping screw M4x16
267115
$2,99 Unit Price incl. VAT
19
Washer 4,3x8x0,5
003054
$0,08 Unit Price incl. VAT
20
Self tapping screw
297498
$0,08 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
