Parts Catalog
Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Central cover - Footrests
by
Wheel huosing - Mudguard
Side cover - Spoiler
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Rear body side l.h.
62025100ND
Not Available
1
Fairing
62025100EC
Not Available
1
FIANCATA POST.SX
620251
$30,99 Unit Price incl. VAT
1
Fairing
62025100F2
Not Available
2
Fairing
62025200F2
Not Available
2
FIANCATA POST.DX
62025200EC
$136,00 Unit Price incl. VAT
2
FIANCATA POST.DX
620252
$29,57 Unit Price incl. VAT
2
Rear body side r.h.
62025200ND
Not Available
3
Self-tap screw
576189
$0,05 Unit Price incl. VAT
3
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
4
Self-tap screw
576189
$0,05 Unit Price incl. VAT
4
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
5
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
6
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
6
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
7
RR LH SIDE COVER
62025100D9
Not Available
7
Guard
620257
Not Available
8
RH SIDE COVER
62025200D9
Not Available
8
PROTEZIONE FIANCATA DX
620258
$23,27 Unit Price incl. VAT
9
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT
9
RONDELLA PIANA METALLICA (12x4,2x1)
013763
$0,08 Unit Price incl. VAT
10
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT
10
RONDELLA PIANA METALLICA (12x4,2x1)
013763
$0,08 Unit Price incl. VAT
11
SPOILER SX
620245
$15,44 Unit Price incl. VAT
11
Spoiler
62024500F2
Not Available
11
Spoiler
62024500EC
Not Available
11
LH BELLYPAN
62024500D9
Not Available
12
Right spoiler
620246
Not Available
12
Spoiler
62024600EC
Not Available
12
SPOILER DX
62024600D9
$79,33 Unit Price incl. VAT
12
Spoiler
62024600F2
Not Available
12
Right spoiler
62024600ND
Not Available
12
VITE
030062
$0,27 Unit Price incl. VAT
13
Self-tap screw
576189
$0,05 Unit Price incl. VAT
13
RONDELLA ELASTICA (6,4X11,8X1)
016406
$0,34 Unit Price incl. VAT
14
VITE
259708
$3,70 Unit Price incl. VAT
14
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
15
RONDELLA PIANA 16x4,2x1
013963
$0,19 Unit Price incl. VAT
15
RONDELLA PIANA METALLICA
013880
$0,08 Unit Price incl. VAT
16
Left spoiler
62024500ND
Not Available
16
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
17
TAMPONE ADESIVO
621485
$0,72 Unit Price incl. VAT
18
Lower spoiler closure
623635
Not Available
18
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
19
RONDELLA PIANA 16x4,2x1
013963
$0,19 Unit Price incl. VAT
19
DISTANZIALE ZIGRINATO FISS.PARASPRUZZI
624085
$3,65 Unit Price incl. VAT
20
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
20
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
21
RONDELLA PIANA 18x6,2x2
013950
$0,34 Unit Price incl. VAT
21
Self-tap screw
576189
$0,05 Unit Price incl. VAT
22
TAMPONE ADESIVO
621485
$0,72 Unit Price incl. VAT
22
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
23
MANIGLIA PASSEGGERO
620255000P
$75,01 Unit Price incl. VAT
23
Handle
62025500ED
Not Available
24
VITE
030062
$0,27 Unit Price incl. VAT
24
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
25
VITE
259708
$3,70 Unit Price incl. VAT
25
Self-tap screw
576189
$0,05 Unit Price incl. VAT
26
RONDELLA PIANA METALLICA
013880
$0,08 Unit Price incl. VAT
27
RONDELLA ELASTICA (6,4X11,8X1)
016406
$0,34 Unit Price incl. VAT
28
Covers
62030000EC
Not Available
28
COPERCHIO SUPERIORE FIANCATE
620300
$6,57 Unit Price incl. VAT
28
COPERCHIO SUPERIORE FIANCATE
62030000F2
$30,34 Unit Price incl. VAT
28
RR CLOSING COVER PAINTED
62030000D9
Not Available
28
COPERCHIO SUPERIORE FIANCATE
62030000ND
$31,75 Unit Price incl. VAT
30
RONDELLA PIANA 18x6,2x2
013950
$0,34 Unit Price incl. VAT
31
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
32
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
33
DISTANZIALE ZIGRINATO FISS.PARASPRUZZI
624085
$3,65 Unit Price incl. VAT

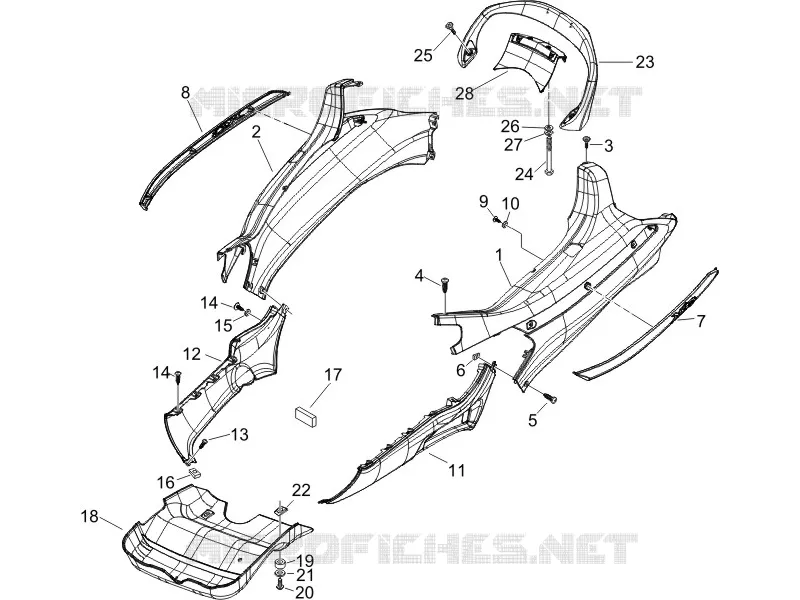

Find the detailed Side cover - Spoiler GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
