Rear suspension - Shock absorber/s for MP3 LT BUSINESS - SPORT ABS from 2014

Rear suspension - Shock absorber/s

1

Complete rear shock absorber

1C001152R

$46,98 Unit Price incl. VAT

2

Engine suspension right bracket

650095

$131,72 Unit Price incl. VAT

3

Circlip

006647

$1,10 Unit Price incl. VAT

4

Ball bearing

82545R

$12,11 Unit Price incl. VAT

5

Stop ring

829377

$0,19 Unit Price incl. VAT

6

Nut M8

020008

$0,08 Unit Price incl. VAT

7

Shock absorber support bracket with U.P.

1C001030

$41,61 Unit Price incl. VAT

8

Shock absorber connection bracket

1C001031

$10,13 Unit Price incl. VAT

9

Spring washer

709047

$0,08 Unit Price incl. VAT

10

screw

598921

$0,56 Unit Price incl. VAT

11

Hex socket screw M8x50

844483

$0,67 Unit Price incl. VAT

12

Plain washer 10,4x18x2

016626

$0,08 Unit Price incl. VAT

13

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

14

Shock absorber support bracket with U.P.

1C001015

$31,75 Unit Price incl. VAT

15

Rear shock absorber fixing bracket

651003

$7,23 Unit Price incl. VAT

16

Plain washer 10,4x18x2

016626

$0,08 Unit Price incl. VAT

17

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

18

Flat washer

1C001145

$1,87 Unit Price incl. VAT

19

Hex socket screw M8x40

149104

$0,51 Unit Price incl. VAT

20

Spring washer

709047

$0,08 Unit Price incl. VAT

21

Low self-locking nut

709052

$1,10 Unit Price incl. VAT

22

Hex socket screw

826298

$0,66 Unit Price incl. VAT

23

Low self-locking nut

709052

$1,10 Unit Price incl. VAT

24

Flat washer

178790

$0,51 Unit Price incl. VAT

25

Screw w/ flange

598838

$1,46 Unit Price incl. VAT

26

Flat washer

1C001249

$1,77 Unit Price incl. VAT

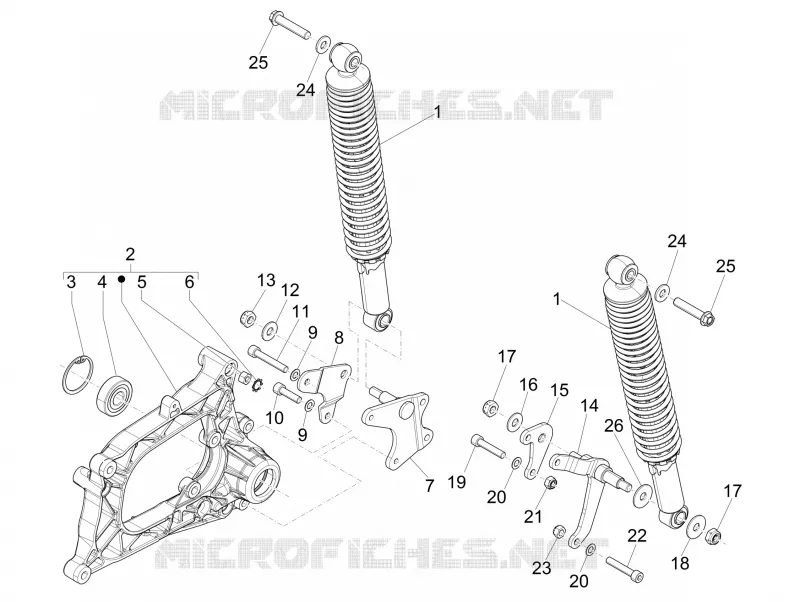

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
