1
Engine displacement
300
2
Model
MP3
3
Year
2014
4
Trim
MP3 LT BUSINESS - SPORT ABS
5
Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Stater - Electric starter
Front wheel
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
35
36
36
1
Front wheel 3.00x"13"
2B000901
$298,35 Unit Price incl. VAT
1
Front wheel 3.00x13"
2B000640
$141,75 Unit Price incl. VAT
2
(Michelin) Tyre 110/70-13"
2B000757
Not Available
3
Rear wheel hub with U.P.
650907
$46,15 Unit Price incl. VAT
4
Fixed sensor cable assembly
2D000066
$127,66 Unit Price incl. VAT
5
Brake disc D 258
1C000681
$233,55 Unit Price incl. VAT
6
Roller cage
177442
$4,04 Unit Price incl. VAT
7
Bearing
177610
$8,41 Unit Price incl. VAT
8
Snap ring
006635
$0,25 Unit Price incl. VAT
9
Gasket ring
177443
$1,77 Unit Price incl. VAT
10
Hex screw M6x22
667153
$0,25 Unit Price incl. VAT
10
Hex screw
1C000291
$0,75 Unit Price incl. VAT
11
Wheel speed sensor
639366
$76,85 Unit Price incl. VAT
12
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
13
Spacer for timing sensor
646760
$3,65 Unit Price incl. VAT
14
Nut
021114
$0,51 Unit Price incl. VAT
15
Cap
177609
$2,19 Unit Price incl. VAT
16
Split pin
012789
$0,16 Unit Price incl. VAT
17
Tubeless valve
597679
$3,03 Unit Price incl. VAT
18
Front wheel 3.00x"13"
2B000901
$298,35 Unit Price incl. VAT
18
Front wheel 3.00x13"
2B000640
$141,75 Unit Price incl. VAT
19
(Michelin) Tyre 110/70-13"
2B000757
Not Available
20
Rear wheel hub with U.P.
650907
$46,15 Unit Price incl. VAT
21
screw torx
623920
$3,70 Unit Price incl. VAT
22
Brake disc D 258
1C000681
$233,55 Unit Price incl. VAT
23
Roller cage
177442
$4,04 Unit Price incl. VAT
24
Bearing
177610
$8,41 Unit Price incl. VAT
25
Snap ring
006635
$0,25 Unit Price incl. VAT
26
Gasket ring
177443
$1,77 Unit Price incl. VAT
27
Hex screw
1C000291
$0,75 Unit Price incl. VAT
28
Nut
021114
$0,51 Unit Price incl. VAT
29
Cap
177609
$2,19 Unit Price incl. VAT
30
Split pin
012789
$0,16 Unit Price incl. VAT
31
Fixed sensor cable assembly
2D000065
Not Available
32
Tubeless valve
597679
$3,03 Unit Price incl. VAT
33
screw
598921
$0,56 Unit Price incl. VAT
34
Spring washer
709047
$0,08 Unit Price incl. VAT
35
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
36
Phonic wheel Z=60
2B000607
$28,21 Unit Price incl. VAT

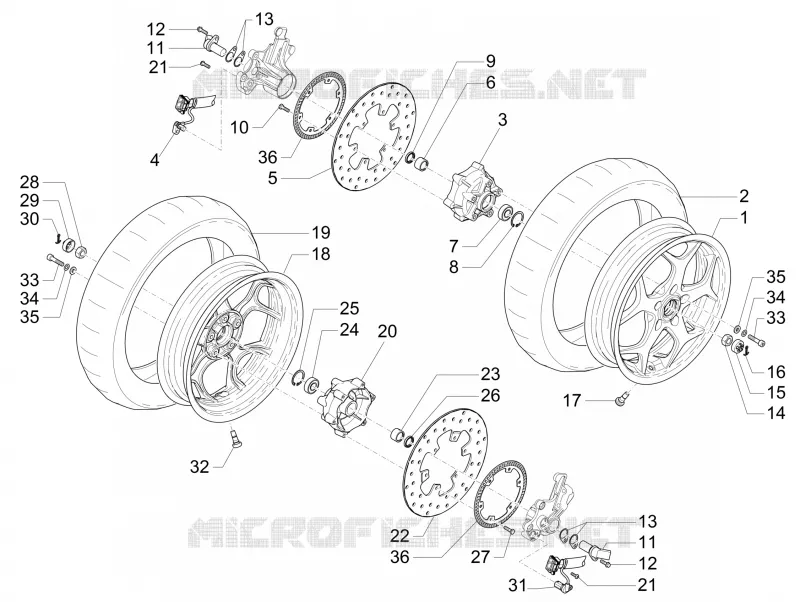

Find the detailed Front wheel GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
