Oil pump for GILERA PIAGGIO VESPA MP3 ie Touring from 2012

Oil pump

1

POMPA OLIO COMPLETA

82948R

$14,37 Unit Price incl. VAT

2

VITE A TESTA ESAGONALE FLANGIATA

829593

$0,50 Unit Price incl. VAT

3

GUARNIZIONE CARTER/POMPA OLIO

847929

$0,34 Unit Price incl. VAT

4

CORONA POMPA OLIO

287913

$6,47 Unit Price incl. VAT

5

Screw w/ flange M6x14

833722

Not Available

5

VITE TEF M6X14

B016426

$0,42 Unit Price incl. VAT

6

MOLLA A TAZZA

436695

$0,59 Unit Price incl. VAT

7

Pan oil

875908

Not Available

8

VITE ESAGONALE FLANGIATA M6x30

B016792

$0,25 Unit Price incl. VAT

8

Screw w/ flange M6x30

289731

Not Available

9

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

10

GUARNIZIONE CARTER/COPPA OLIO

846098

$3,28 Unit Price incl. VAT

11

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

11

VITE ESAGONALE FLANGIATA M6X16 CL10,9

B016777

$0,16 Unit Price incl. VAT

12

COMPLESSIVO TENDICATENA

82650R

$34,52 Unit Price incl. VAT

13

GUARNIZIONE CIL./SUPP.TENDICATENA

847928

$0,42 Unit Price incl. VAT

14

CATENA POMPA OLIO (50 PS)

82649R

$13,37 Unit Price incl. VAT

15

PIGNONE COM.POMPA OLIO

82783R

$7,99 Unit Price incl. VAT

16

ANELLO DI TENUTA (O-RING)

825952

$0,15 Unit Price incl. VAT

17

RONDELLA PARAOLIO

483918

$0,53 Unit Price incl. VAT

18

ASTA TENDICATENA

840344

$4,20 Unit Price incl. VAT

19

Screw w/ flange M6x25

414837

Not Available

19

VITE ESAGONALE FLANGIATA M6X25 CL10,9

B016774

$0,34 Unit Price incl. VAT

20

Chain tensioner rod spacer

485868

$0,29 Unit Price incl. VAT

21

CATENA DISTRIBUZIONE SILENZIATORE

82723R

$24,71 Unit Price incl. VAT

22

PIGNONE DISTRIBUZIONE

82782R

$7,06 Unit Price incl. VAT

23

PATTINO FISSO

847516

$4,25 Unit Price incl. VAT

24

COPERCHIO DISTRIBUZIONE

847116

$22,74 Unit Price incl. VAT

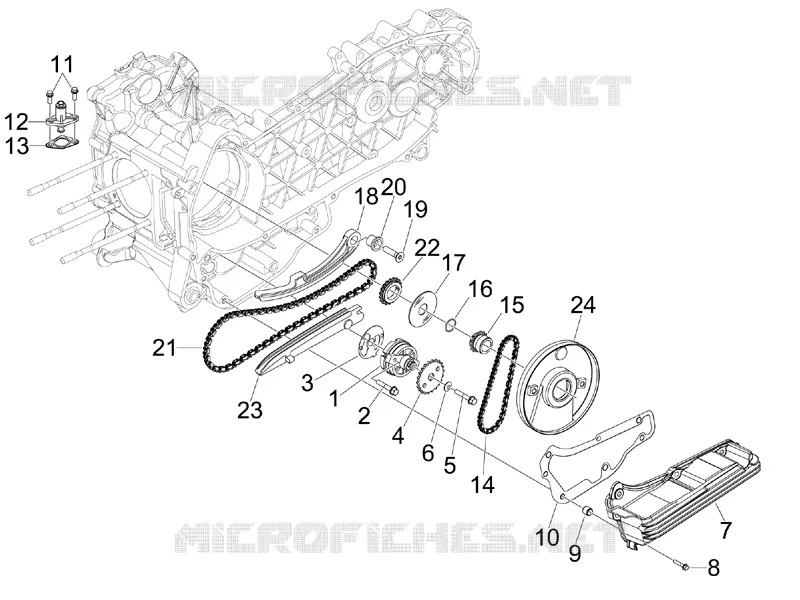

Find the detailed Oil pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
