Rear suspension - Shock absorber/s for GILERA PIAGGIO VESPA MP3 ie Touring from 2012

Rear suspension - Shock absorber/s

1

AMMORTIZZATORE POSTER.COMPL.

58511R

$146,29 Unit Price incl. VAT

2

STAFFA DX SOSPENS. MOTORE COMPL.

650095

$131,72 Unit Price incl. VAT

3

ANELLO ELASTICO 47x50,5x1,75

006647

$1,10 Unit Price incl. VAT

4

CUSCINETTO RADIALE RIGIDO

82545R

$12,11 Unit Price incl. VAT

5

ANELLO DI RITEGNO

829377

$0,19 Unit Price incl. VAT

6

DADO M8-6H

020008

$0,08 Unit Price incl. VAT

7

STAFFA SUPPORTO PINZA E AMM.RE

650200

$105,75 Unit Price incl. VAT

8

VITE TE PARZ.FIL. M10x45 UNI 5737-65

015578

$2,99 Unit Price incl. VAT

9

ROSETTA ELASTICA CON DENTATURA

012535

$0,08 Unit Price incl. VAT

10

BOCCOLA

597149

$3,65 Unit Price incl. VAT

11

VITE T.C.E.I. M8X50

844483

$0,67 Unit Price incl. VAT

12

RONDELLA ELAST.ONDULATA (D15 F8,6)

709047

$0,08 Unit Price incl. VAT

13

VITE

015792

$0,51 Unit Price incl. VAT

14

STAFFA SUPPORTO AMM.RE CON P.I.

650240

$105,75 Unit Price incl. VAT

15

STAFFA FIS. AMMORTIZ.RE POST.

651003

$7,23 Unit Price incl. VAT

16

RONDELLA D30 F10,2 S2

013962

$2,95 Unit Price incl. VAT

17

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

18

ROND.PIANA 10,4X18X2

016626

$0,08 Unit Price incl. VAT

19

VITE T.C.ESAG.INC.M8x40 UNI 5931-84 8.8

149104

$0,51 Unit Price incl. VAT

20

RONDELLA ELAST.ONDULATA (D15 F8,6)

709047

$0,08 Unit Price incl. VAT

21

DADO M8-6H

020008

$0,08 Unit Price incl. VAT

22

VITE A TESTA CILINDRICA

826298

$0,66 Unit Price incl. VAT

23

RONDELLA PIANA

178790

$0,51 Unit Price incl. VAT

24

VITE A TESTA ESAGONALE FLANG. PAR. FIL.

268158

$1,26 Unit Price incl. VAT

25

DADO M8-6H

020008

$0,08 Unit Price incl. VAT

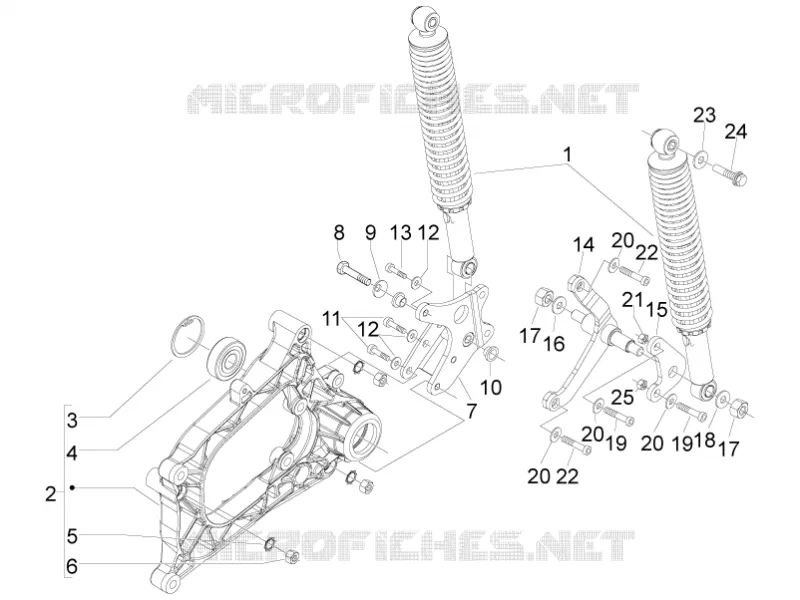

Find the detailed Rear suspension - Shock absorber/s GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
