1
Engine displacement
300
2
Model
MP3
3
Year
2017
4
Trim
MP3 ie E4 LT BUSINESS - SPORT ABS
5
Parts Catalog

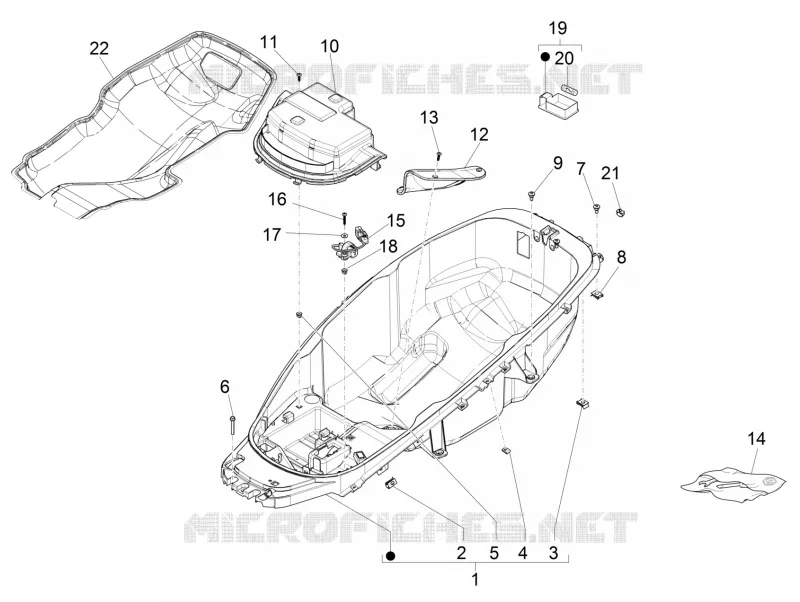

Helmet huosing - Undersaddle
6
Parts Diagram
Parts Catalog
Anti-percolation system
by
Fork/steering tube - Steering bearing unit
Helmet huosing - Undersaddle
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Helmet holder assembly
1B003850
$84,97 Unit Price incl. VAT
2
Spring plate M5
248419
$0,67 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Spring plate
CM017410
$0,34 Unit Price incl. VAT
5
Expansion plug
199190
$2,95 Unit Price incl. VAT
6
Screw w/ flange
874550
$0,27 Unit Price incl. VAT
7
screw
CM179202
$0,25 Unit Price incl. VAT
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
10
Battery cover
1B001885
$27,67 Unit Price incl. VAT
11
Self tapping screw
297498
$0,08 Unit Price incl. VAT
12
Insp. door
2B000721
$7,37 Unit Price incl. VAT
13
Self tapping screw 4,2x16
CM178606
$0,16 Unit Price incl. VAT
14
Complete tools bag
651181
$15,39 Unit Price incl. VAT
15
Fall sensor
680071
$40,43 Unit Price incl. VAT
16
Self tapping screw
CM178608
$0,16 Unit Price incl. VAT
17
Flat washer Ø5,3xØ14x1
097733
$3,65 Unit Price incl. VAT
18
Expansion plug
199190
$2,95 Unit Price incl. VAT
19
Ceiling bowl
293154
$10,35 Unit Price incl. VAT
20
Torpedo shaped lamp 12V-5W
071633
$8,81 Unit Price incl. VAT
21
Spring
140435
$1,01 Unit Price incl. VAT
22
Helmet compartment mat
1B004084
$116,50 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
